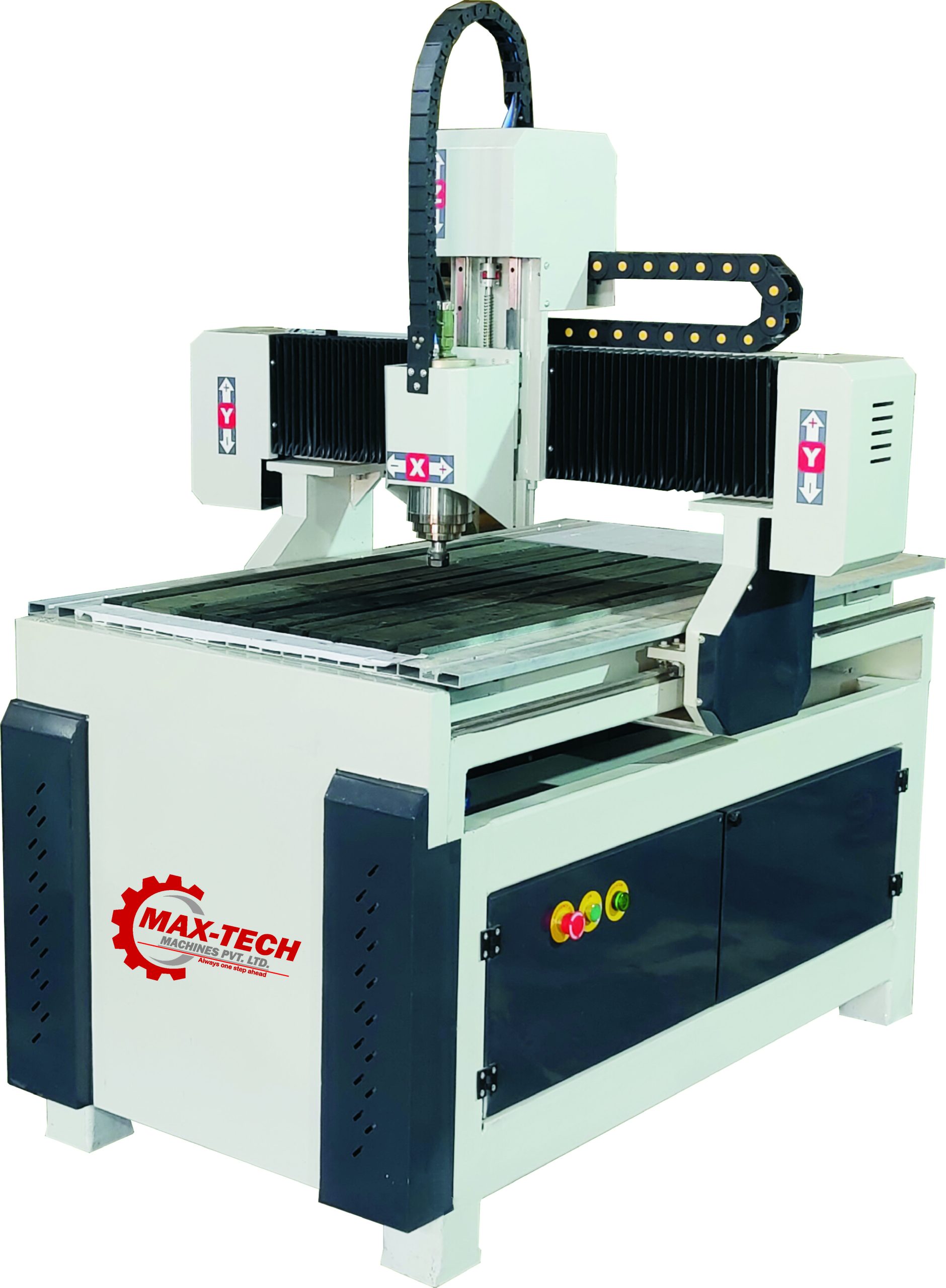

SMALL SIZE ROUTER MACHINE

SMALL SIZE ROUTER MACHINE

Small Size CNC routers can cut a variety of materials, including wood, plastic, aluminum, and high-density foam. CNC stands for computer numerical control, and it refers to machines that are operated by computer software and electronics rather than by a human operator.

CNC machines can cut in three directions, known as the X, Y, and Z axes, in most circumstances. The longest axis is the X-axis, which runs from front to back. The Y-axis represents left and right, whereas the Z-axis represents up and down. CNC routers are faster and more exact than people since they run on computers, making them valuable in manufacturing.

DESCRIPTION:

Small Size CNC routers can cut a variety of materials, including wood, plastic, aluminum, and high-density foam. CNC stands for computer numerical control, and it refers to machines that are operated by computer software and electronics rather than by a human operator.

CNC machines can cut in three directions, known as the X, Y, and Z axes, in most circumstances. The longest axis is the X-axis, which runs from front to back. The Y-axis represents left and right, whereas the Z-axis represents up and down. CNC routers are faster and more exact than people since they run on computers, making them valuable in manufacturing.

Features:

  • 4 heads, the head can work at the same time
  • Constant Power water cooling spindle, Higher working strength.
  • Japanese FUJI SERVO motor, higher working precision
  • Diameter, length of rotary can manufacture according to client’s need.



SPECIFICATIONS:

X-Y Axis Working Area 1300 x 2500 mm
Z Axis Working Area 300 mm
Spindle Power 6 kW
Model 1325 Series
Control System Digital Signal Processor (DSP)
Brand Max-Tech
Operating System NK105
X-Y Movement Rack & Pinion
Z movement Ball Screw
Spindle Speed 18000 rpm
Variable Frequency Drive Delta
Drive Servo Motor (Fuji, Japanese Make)
Job Material MDF, Wood, Sign Board, HDF, PVC, Acrylic, Foam Board, Plywood
Country Origin Made in India
