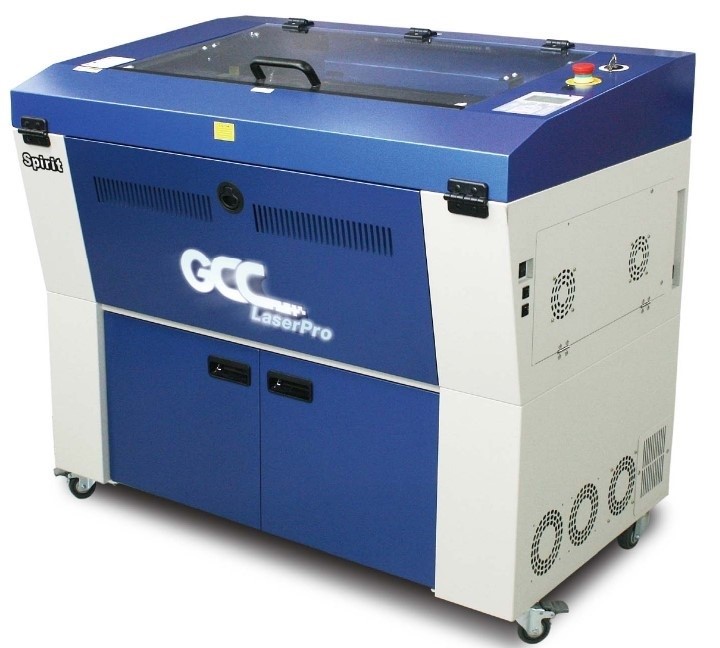

DESCRIPTION:

Working Area : 740 x 460 mm (29 x 18 in.)

Z-axis : 165 mm (6.5 in.)

Wattage : 12W~100W

Max. Working Speed : 60 IPS

SPECIFICATION

Work Area: 25 x 18 in. (640 x 460 mm) Extendable to 29 x 18 in (740 x 460 mm)

Max. Part Size (LxWxH) [All doors closed] : 30 x 19 x 6.5 in. (762 x 482.6 x 165 mm)

Max. Part Size (LxWxH) [All doors open] : 30 x ∞ x 6.5 in. (762 x ∞ x 165 mm)

Table Size: 31.1 x 20.9 in. (790 x 530 mm)

Dimensions : 44.3 x 26.3 x 39.8 in. (1125 x 720 x 1005 mm)

Laser Source : 12 to 100W 10.6-µm sealed CO₂ Laser/20W & 60W 9.3- µm sealed CO₂ Laser

Cooling : Air-cooled, Operating environment temperature 15-30°C (60°-86°F)

Drive : Closed-loop DC Servo Control

Speed Control: Adjustable from 0.1-100% of 60 IPS (Up to 16 colour-linked speed settings per job)

Power Control : Adjustable from 1-100% (Up to 16 colour-linked power settings per job)

Engraving Capability : 256-leval grey scale Imago processing capability

Distance Accuracy :  0.254 mm or 0.1% of move, whichever is greater

Z-Axis Movement : Automatic

Focus Lens : Standard 2.0″, optional 1.5″, 2.5″, & 4.0″ available

Resolution (DPI) : Available 125, 250, 300, 380, 500, 600, 760, 1000, 1500

Interface : 10 Base-T Ethernet

USB Type-A 2.0 G-For USB storage (Max. 32GB capacity, FAT file system)

USB Type-B 2.0-For connecting with the computer

Compatiblo Operating Systoms : MS Windows

Display Panel: 4-line LCD display showing current file name, total working time, laser power,                                                           engraving speed, file(s) loaded into memory buffer, setup and diagnostic menus                                                         Safely : Class I Laser Product Compliant with EN60825,

Class II Laser Product Compliant with CDRH

2006/42/EC Machinery Directive Compliance

Class 4 Laser Product Compliant with CDRH with the optional pass-through door module

Operation Voltage : Laser below 80Watt. 100-240VAC, 50-60Hz Auto Switching, Max. 15A

Laser 80Watt and above, 200-240VAC, 50-60Hz, Max. 15A

Fume Extraction System : External exhaust system with minimum flow rate 640m/h

(CFM  377 ft/min) is required, 2.3KPA negative pressure (Puro-Air PA-1000FS @4″ exhaust port)
