DESCRIPTIPON:

AAS : Yes (LX)

Max. Cutting Width : 610 mm (24 in.) / 1016 mm (40 in.) / 1320 mm (52 in.) / 1570 mm (62 in.) / 1830 mm (72 in.)

Max. Cutting Force : 600 g



SPECIFICATION:

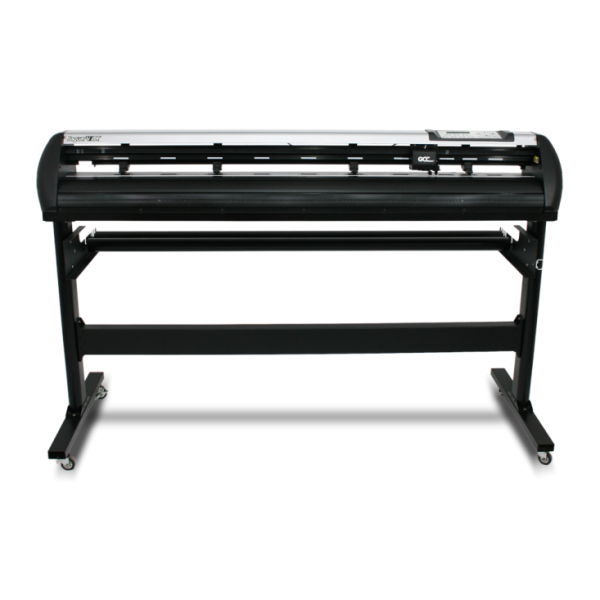

Model No: GCC Jaguar-V LX

Operation Method: Roller type

Max. Cutting Width: 1016mm (40”)

Max. Cutting Length: 50m (164ft)

Max. Media Cutting Width: 1270mm (50”)

Min. Media Cutting Width: 50m (1.97”)

Number of Pinch Rollers: 4

Acceptable Material Thickness: 0.8mm (0.03”)

Motor Drive: DC servo control

Max. Cutting Force: 600gm

Max.  Cutting Speed: 1530mm/Sec(60ips) (At 45 degree Direction)

Acceleration: 4.2 G

Offset: 0~1.0 mm(with an increase of 0.25mm)

Memory buffer: 32mb/16mb(when using AAS)

Interfaces: USB 2.0(Full screen), serial & Ethernet

Types of command: HP-GL, HP-GL/2

Mechanical Resolution: 0.0006mm

Software Resolution: 0.025mm

Repeatability: +0.1mm

Distance Accuracy: +0.254mm

Curve & ARC Smoothing: Yes

Configurable Origin: Yes

Tangential –emulation: Yes

Repeat: Yes

Copy: Yes

Control Panel: LCD(20digits x 2 lines),14 keys, 1 power LED

Diameter of blade: 2.5mm

Power supply: AC 100-240V, 50~60 HZ

Power consumption: 250W

Dimension: 1096*1450*651mm

Stand: Standard

Media Basket: Optional

Media take-up system: N/A
