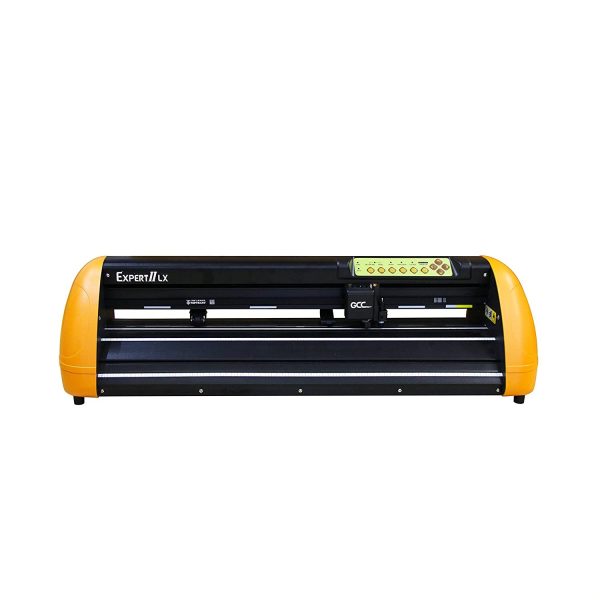

Economical cutting plotter to meets the demands of the sign market.
SPECIFICATION :
| MODEL NUMBER | EX II-24 EX II-24LX EX II-52 EXII-52LX |
| Operational Method | Roller Type |
| Max. Cutting Width | 600 mm (23.6 in.) 1320 mm (51.96 in ) |
| Max. Cutting Length | 50m (164 ft) |
| Max. Media Loading Width | 719 mm (28.3 in.) 1470 mm (57.87 in.) |
| Min. Media Loading Width | 50 mm (1.97 in.) |
| Number of Pinch Rollers | 3 |
| Acceptable Material Thickness | 0.8 mm (0.03 in.) |
| Motor Drive | Stepper |
| Cutting Force | 350g |
| Max. Cutting Speed | Up to 705 mm/sec (27.8 ips) Up to 635 mm/sec (25 ips)
(at 45 degree direction) (at 45 degree direction) |
| Acceleration | 0.7 G |
| Offset | 0-1.0 mm (with an increase of 0.025 mm) |
| Mechanical Resolution | 0.012 mm (0.00047 in) |
| Software Resolution | 0.025 mm (0.00008 in) |
| Distance Accuracy | ±0.254 mm or± 0.1% of move, whichever is greater |
| Repeatability | ±0.1MM |
| Automatic-Aligning System (AAS) | Available on Expert II LX models, |
| Memory Buffer | 1 MB/500 KB (when using AAS) |
| Interfaces | USB 2.0 (Full speed) & Serial (RS-232C) |
| Type of Command | HP-GL. HP-GL/2 |
| Control Panel | 10 Control Keys and 6 LED |
| Diameter of Blade | 2.5 mm |
| Dimension (HxWxD) mm | 233 * 800 * 255 1065 *1632 * 620 |
| Dimension (HxWxD) in | 9.1 * 34.6*10 41.93 62 25 24.41 (stand included) |
| Net Weight | 11 kg (24.3ib) 41 kg( 90.2ib) (stang included) |
| Stand | Optional Standard |
| Power Supply | 100-240 VAC, 50/60 Hz (auto switching) |
| Power Consumption | Max 65 W |
| Environment Temperature | 15 C-30 C/60 F-86 F(operating) |
| Environment Humidity | 25%-75% relative humidity operating |
