Basic Information:

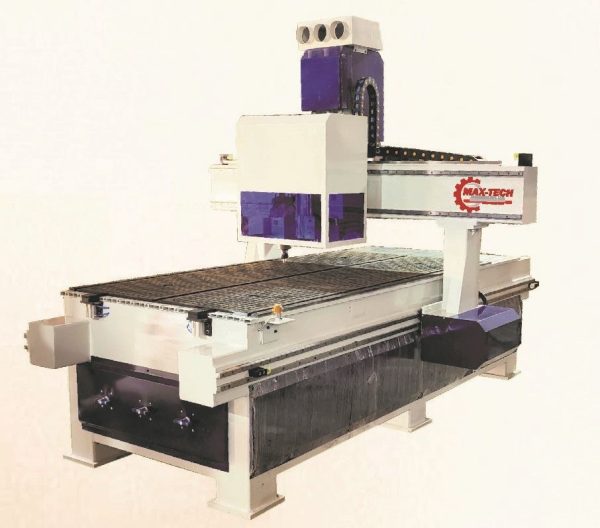

AT-1325 Double heads drill CNC router machine is an economical processing center specialized in cutting, drilling, slotting and engraving of panel furniture. This model not only greatly improves the production and processing accuracy and efficiency of panel furniture, but also saves production costs. The machine is equipped with a 9V row drill set imported (5+4), which has fast drilling speed. It is also equipped with two 6 KW spindles for grooving and cutting the plates.

Applications:
• Advertising industry: Acrylic, Colour plate, PVC, ABS board, aluminium, and aluminium panels with carved V-shaped groove cut, colour portrait, three-dimensional billboards, all types of signs, badges, seat plate, copper, class logos, trademarks.
• Wood Working: Furniture, musical instruments, manufacturing, wooden handicrafts, art murals, MDF paint doors, composite doors, windows and doors cupboard, bedside cabinets, wall relief sculpture cutting, decorations processing, gift wrap, wave board, countertop appliances, sporting goods, industrial products, and other wooden surfaces and three-dimensional shape cutting.

SPECIFICATIONS:

Working area : 4’ x 8’ (1300” x 2500”mm)
Spindle motor : 6 Kw spindle (air cooled)
Driving system : Stepper motor and drive with Delta gear box
Operating system : DSP weihong NK 105 (G2)
Linier guide : 25 mm Hiwin
Ball screw for “Z” : 25 mm Hiwin make
X & Y motion : 25 mm Helical Rack & pinion Hiwin
Lubrication system : Semi automatic lubrication
VFD : Delta make 10.0 H.P.
Engraving & cutting tools : 5 nos
R.P.M. : 24000
Working speed : 40000 mm/min
Machine weight : 1550 kg
