DESCRIPTION:
CNC routers can cut a variety of materials, including wood, plastic, aluminium, and high-density foam. CNC stands for computer numerical control, and it refers to machines that are operated by computer software and electronics rather than by a human operator.
CNC machines can cut in three directions, known as the X, Y, and Z axes, in most circumstances. The longest axis is the X-axis, which runs from front to back. The Y-axis represents left and right, whereas the Z-axis represents up and down. CNC routers are faster and more exact than people since they run on computers, making them valuable in manufacturing.
Features:
• 4 heads, the head can work at the same time
• Constant Power water cooling spindle, Higher working strength.
• Japanese FUJI SERVO motor, higher working precision
• Diameter, length of rotary can manufacture according to client’s need.
SPECIFICATIONS:
X-Y Axis Working Area | 1300 x 2500 mm |
Z Axis Working Area | 200 mm |
Spindle Power | 3.5 kW |

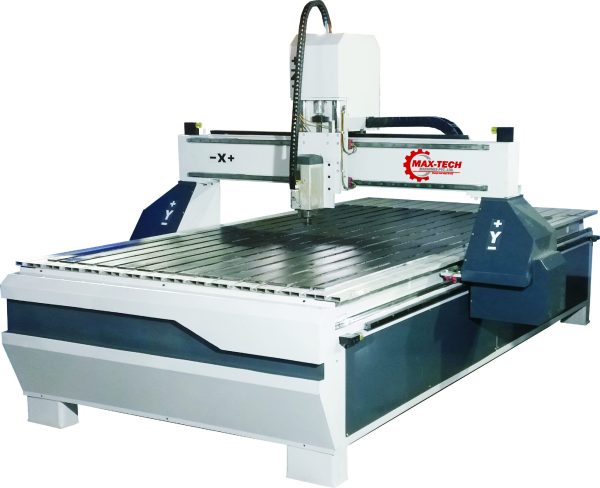

Model | ST-1325 |
Control System | Digital Signal Processor (DSP) |
Brand | Max-Tech |
Operating System | NK105G2 |
Spindle | HSD Italian,Air Cooled |
X-Y Movement | Rack (YYC Helical) & Pinion (THK,Japan) |
Z movement | Ball Screw |
Spindle Speed | 18000 rpm |
Variable Frequency Drive | Delta |
Drive | Stepper Motor (Yakoo Make) |
Job Material | MDF, Wood, Sign Board, HDF, PVC, Acrylic, Foam Board, Plywood |
Power Supply | AC 230V/50hz/Single Phase |
