DESCRIPTION:
CNC routers can cut a variety of materials, including wood, plastic, aluminium, and high-density foam. CNC stands for computer numerical control, and it refers to machines that are operated by computer software and electronics rather than by a human operator.
CNC machines can cut in three directions, known as the X, Y, and Z axes, in most circumstances. The longest axis is the X-axis, which runs from front to back. The Y-axis represents left and right, whereas the Z-axis represents up and down. CNC routers are faster and more exact than people since they run on computers, making them valuable in manufacturing.
Features:
• 4 heads, the head can work at the same time
• Constant Power water cooling spindle, Higher working strength.
• Japanese FUJI SERVO motor, higher working precision
• Diameter, length of rotary can manufacture according to client’s need.

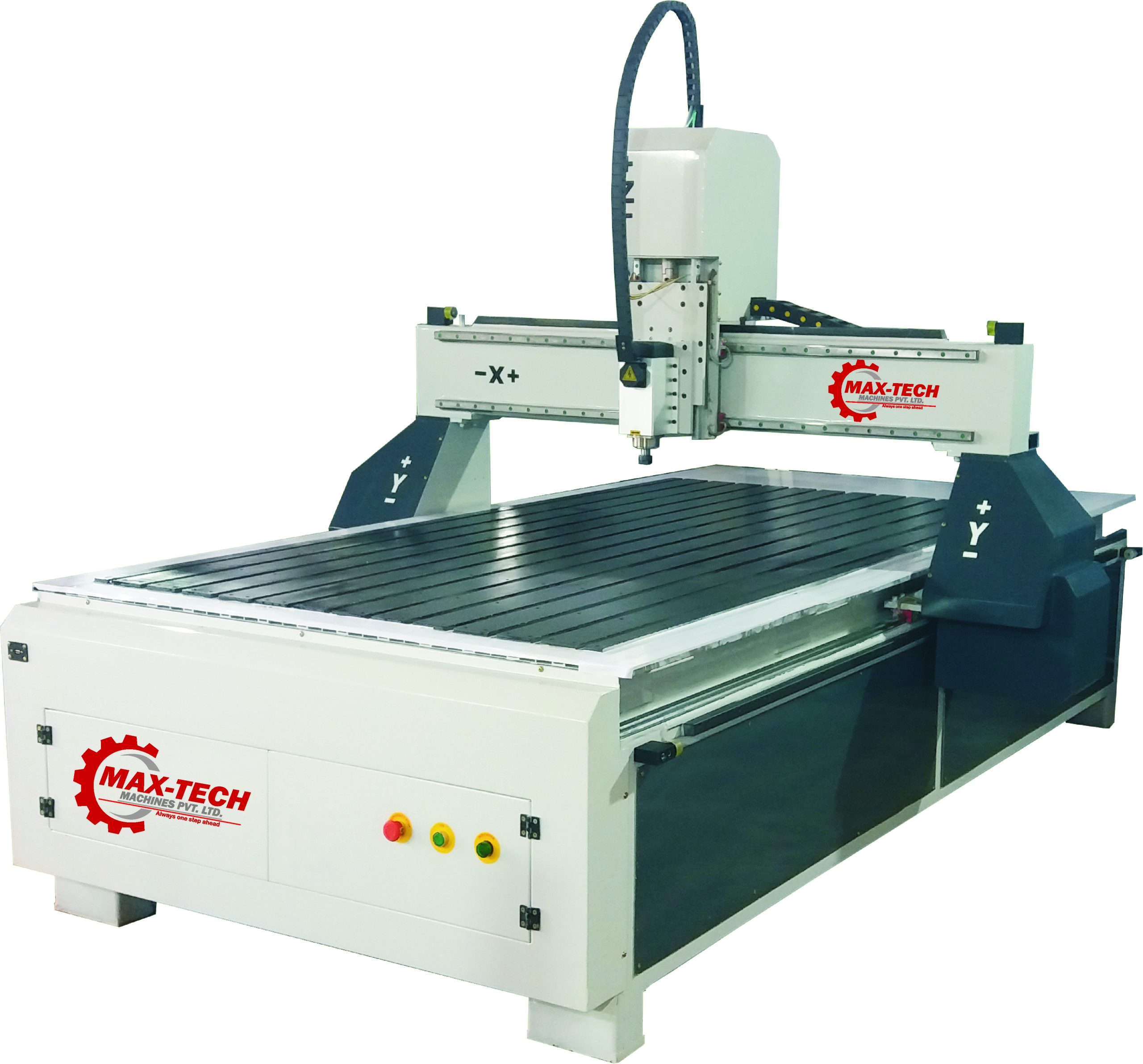

SPECIFICATIONS:
| X-Y Axis Working Area | 1300 x 2500 mm |
| Z Axis Working Area | 200 mm |
| Spindle Power | 3.5/6 kW |
| Model | EX-1325 |
| Control System | Digital Signal Processor (DSP) |
| Brand | Max-Tech |
| Operating System | NK105G2 |
| Spindle | HSD (Italian)/ HQD Air Cooled |
| X-Y Movement | Rack (YYC Helical) & Pinion (THK,Japan) |
| Z movement | Ball Screw |
| Spindle Speed | 18000 rpm |
| Variable Frequency Drive | Delta |
| Drive | Easy Servo (Lead shine) with Gear Box (Delta) |
| Job Material | MDF, Wood, Sign Board, HDF, PVC, Acrylic, Foam Board, Plywood |
| Power Supply (for 3.5kW) | AC 230V/50hz/Single Phase |
| Power Supply (for 6 kW) | AC 440V/50hz/3 Phase |
